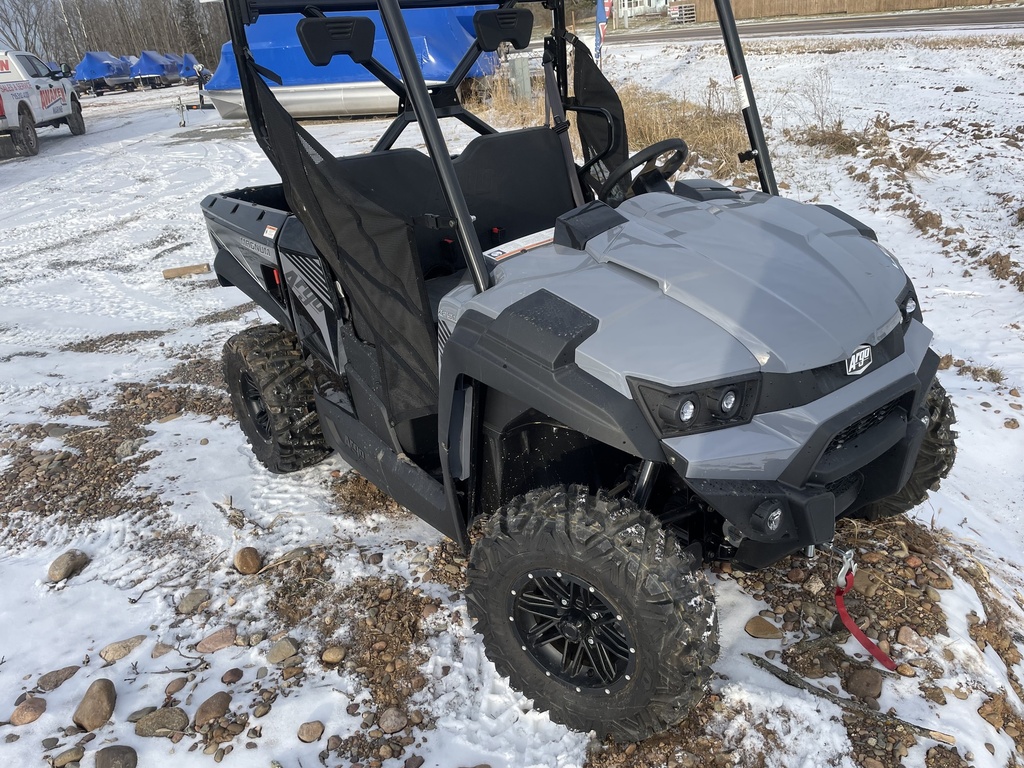

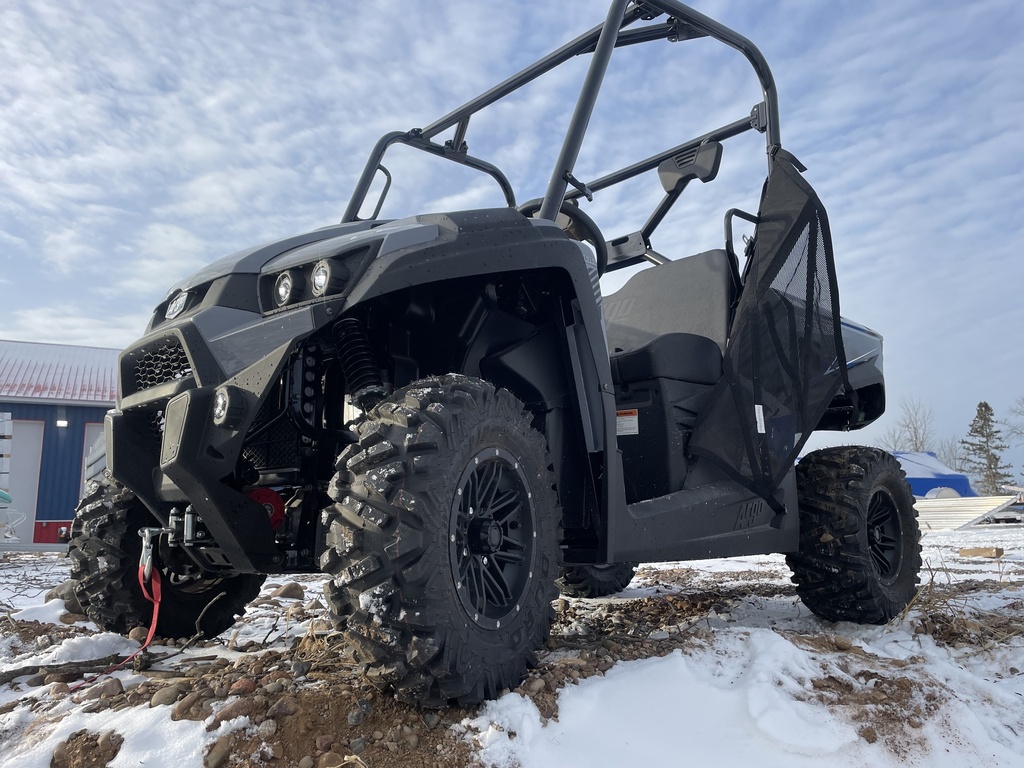

ARGO MAGNUM XF 500 LE
GET AFTER ALL OF THOSE PROJECTS IN SYTLE.

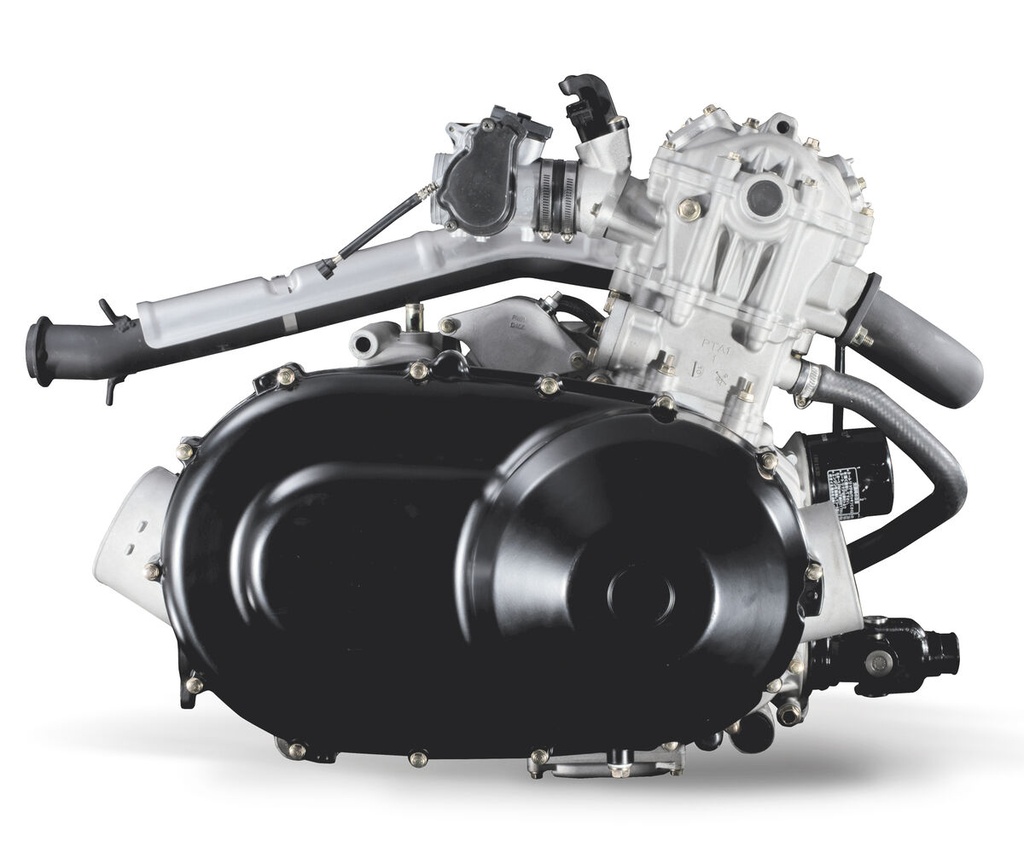

We get it. Doing hard work, well, is hard work. That’s why you need to experience the ARGO Magnum XF 500 LE to get things done faster. At ARGO, we combine fun and function with our premium side-by-sides. The fun starts with the dependable 443cc liquid-cooled EFI engine for plenty of performance and is anchored by the automatic CV transmission with engine braking for a smooth, safe ride.

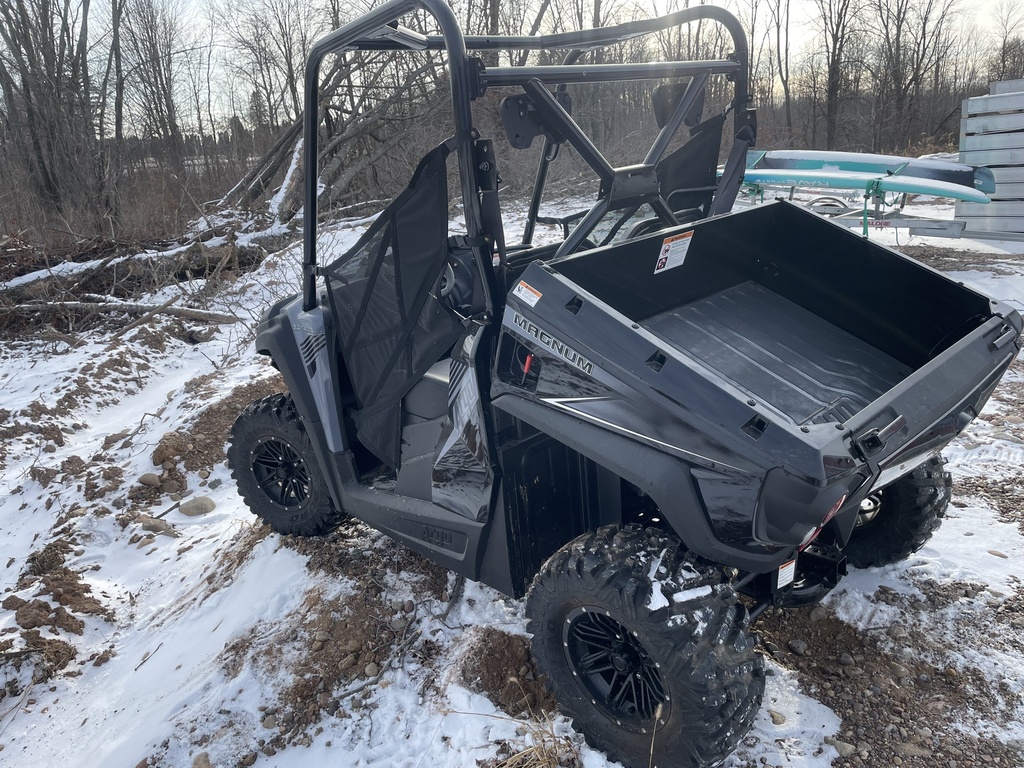

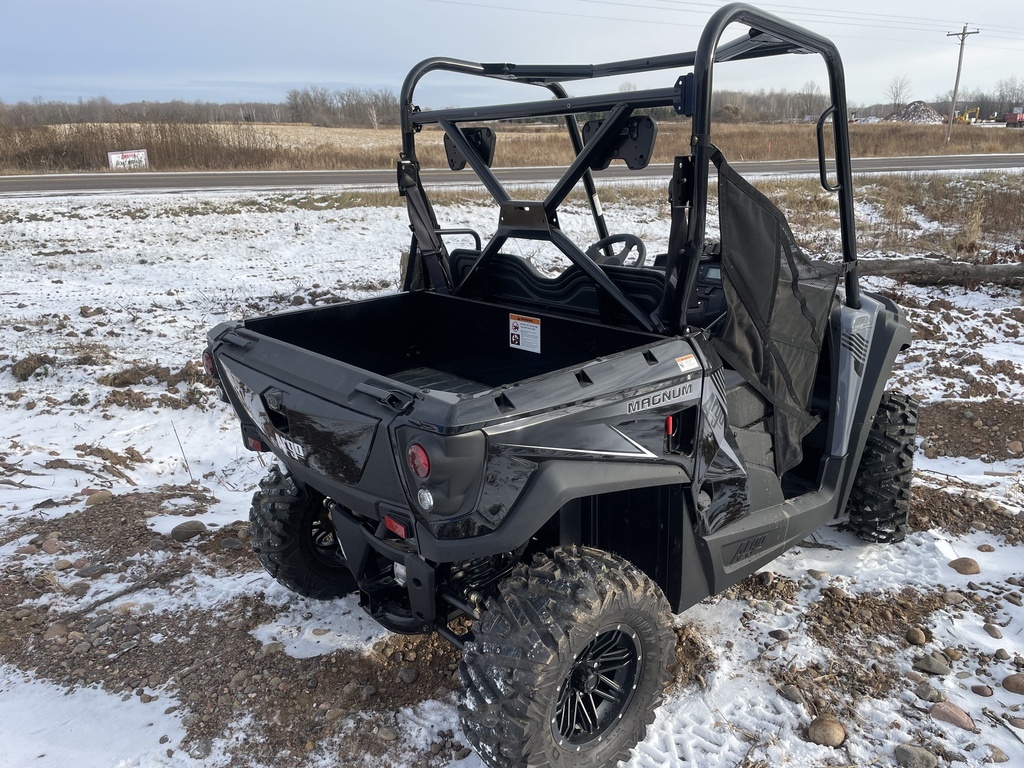

The heavy-duty rear dump box gives you the ability to haul your equipment, landscaping rocks or coolers to the dock. The Magnum XF 500 LE includes aluminum rims, electric power steering (EPS), a durable 3,000 lb. winch and premium painted plastic body panels. We guarantee people will show up to help out with your projects when the Magnum XF 500 LE is in your driveway.
DISPLACEMENT 443CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 89 X 71.2 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON STANDARD
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R/P
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 106.3 IN (2,700 MM)
WIDTH 56.7 IN (1,440 MM)
HEIGHT 72.8 IN (1,850 MM)
SEAT HEIGHT 32.9 IN (836 MM)
GROUND CLEARANCE 10 IN (254 MM)
WHEELBASE 72 IN (1,829 MM)
TOWING CAPACITY 1,200 LBS (545.5 KG)
DRY WEIGHT 1,025 LBS (465 KG)
WET WEIGHT 1,080 LBS (490 KG)
FUEL TANK CAPACITY 8.5 GAL (32 L)
RIDER CAPACITY 2
SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL - FRONT 6.9 IN (176 MM)
SUSPENSION TRAVEL - REAR 6.8 IN (172 MM)
BRAKE - FRONT DUAL HYDRAULIC DISC
BRAKE - REAR HYDRAULIC DISC
FOOT BRAKE YES
TIRE SIZE (FRONT) AT25X8-12 (DURO)
TIRE SIZE (REAR) AT25X10-12 (DURO)

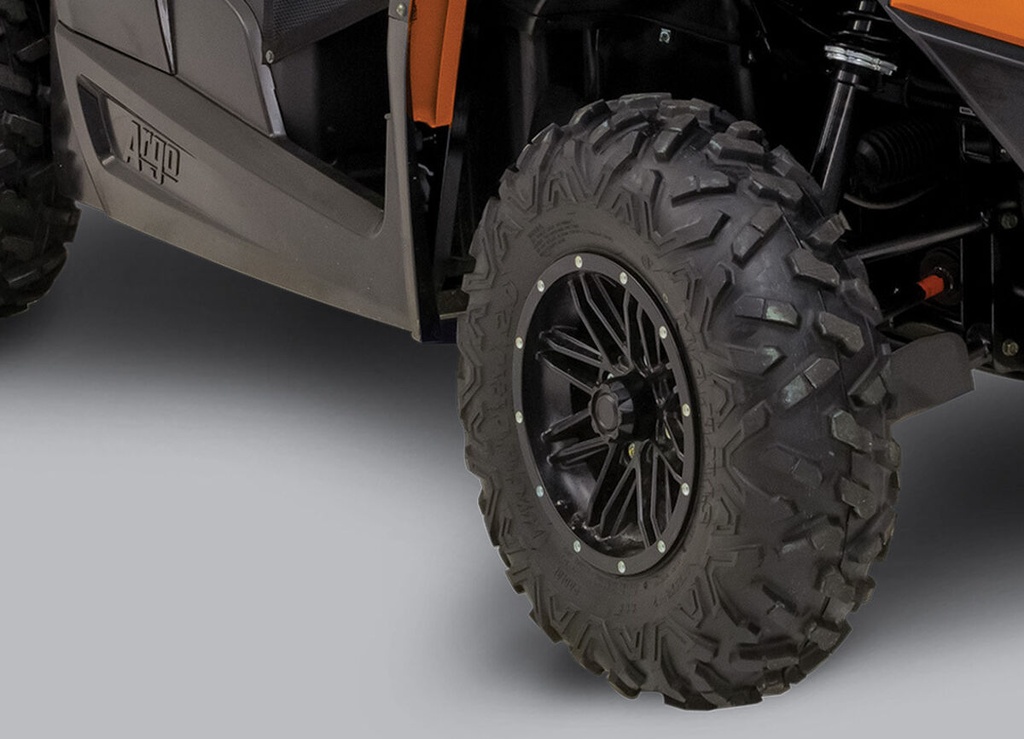

WHEEL RIM ALUMINUM

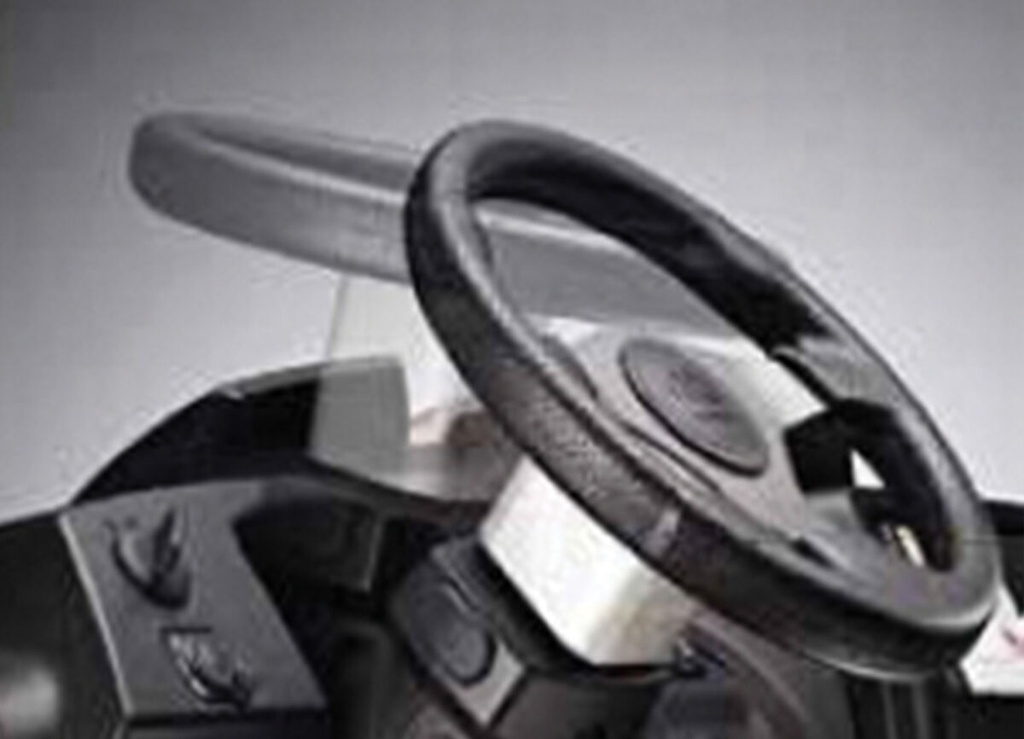

ELECTRIC POWER STEERING YES
BATTERY MF 18AH
FRONT RACK N/A
REAR RACK N/A
FRONT BUMPER ACCESSORY
REAR BUMPER ACCESSORY

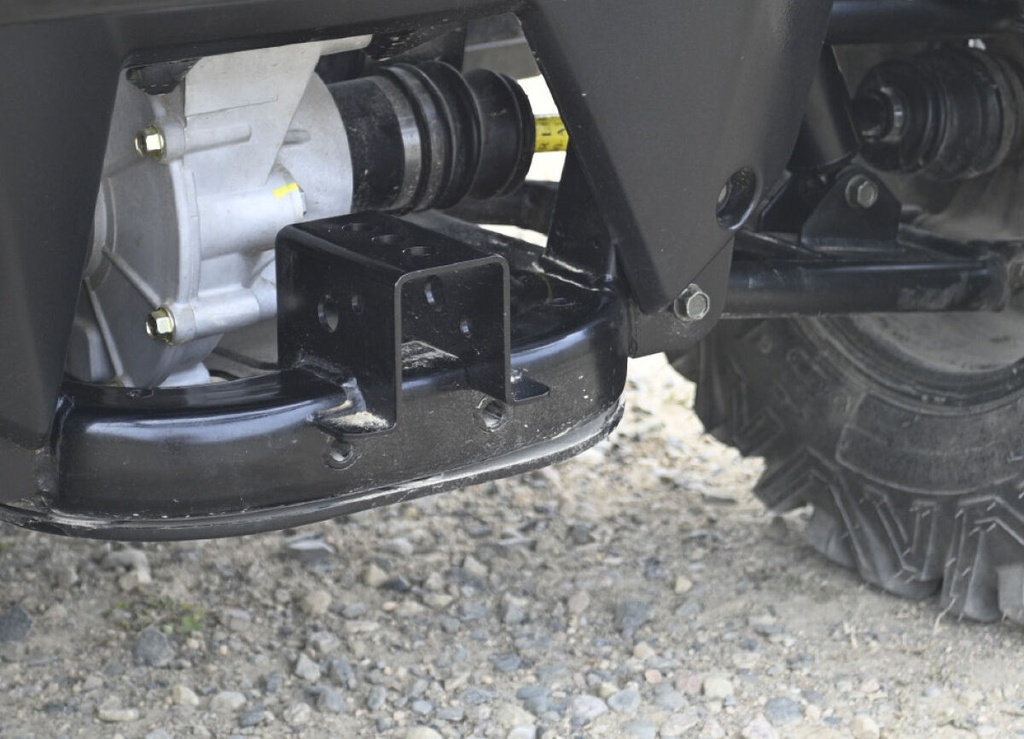

HITCH STANDARD/2" RECEIVER
WINCH 3,000 LB WINCH
12V CHARGER STANDARD
DAYLIGHT STRIP RUNNING LIGHTS
SKID PLATE PLASTIC
PASSENGER HANDLES YES

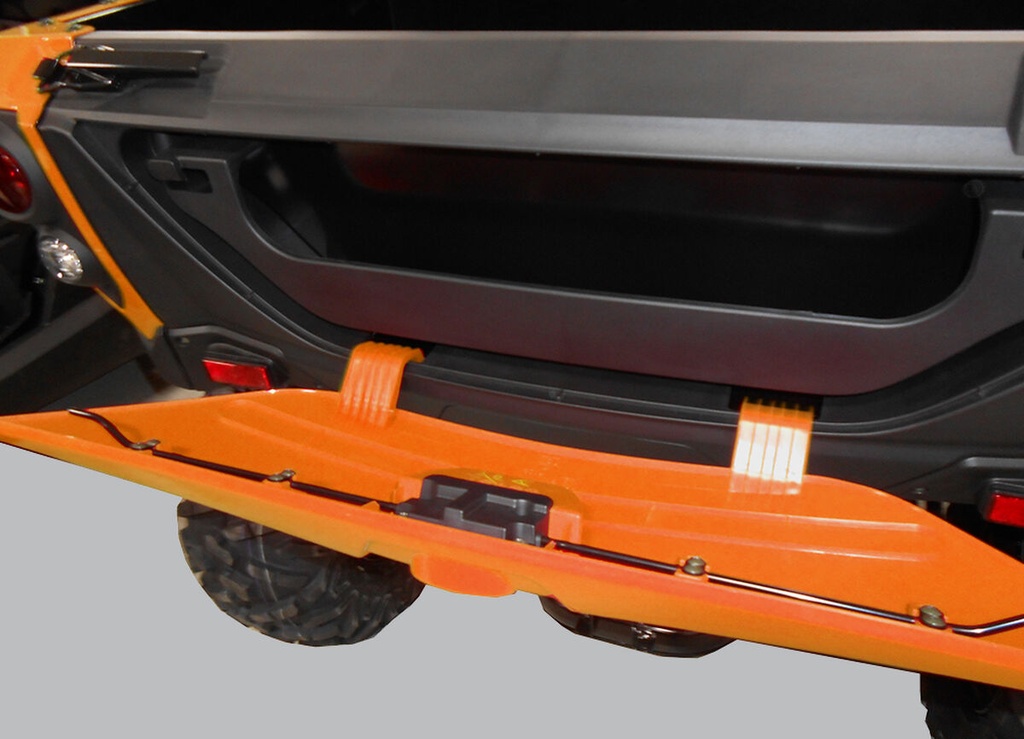

STORAGE UNDERHOOD, UNDERSEAT, TAILGATE, GLOVE BOX
FRONT BRUSH GUARD ACCESSORY
REAR BUMPER ACCESSORY
USB CHARGING PORT N/A
REAR BOX STORAGE 441 LB (200 KG)

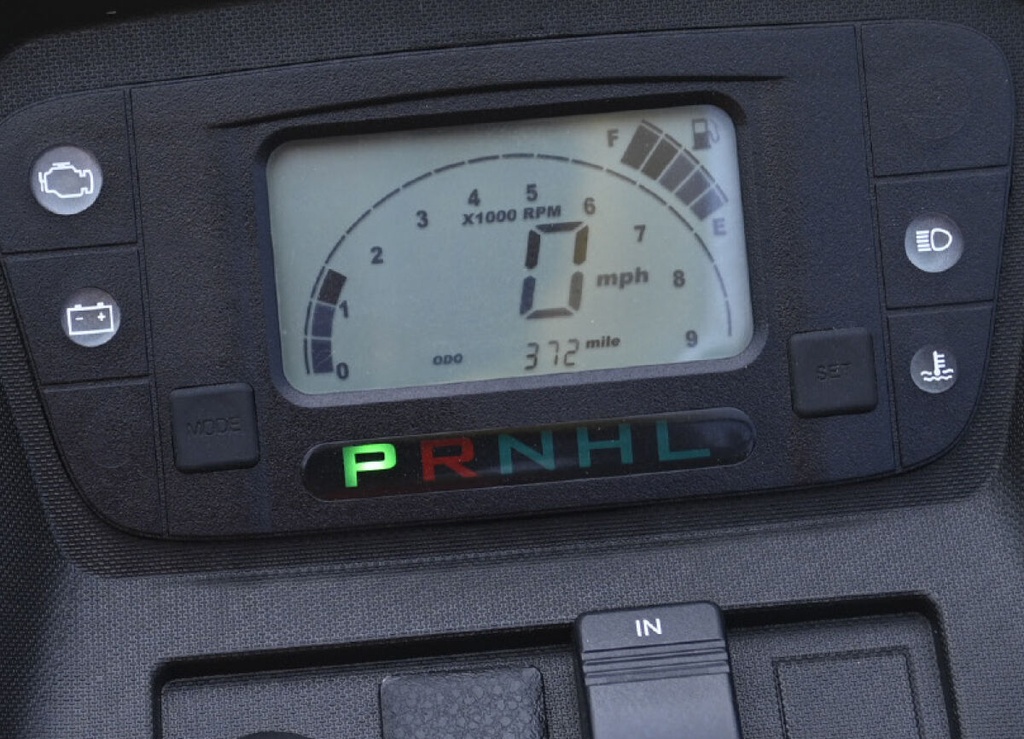

INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, APS INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
LIGHTING DUAL 12V 35 W HIGH/LOW BEAM DUAL WITH BRAKE LIGHT
COLOR PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY
PRICE DOES NOT INCLUDE TAX AND FEES
