ARGO XPLORER 700 LE 4X4
PURPOSELY BUILT FOR MORE THAN THE TRAIL.
At times you need to calm the chaos in your head from your non-stop life. To do so, you need to self-reflect, think deep, and take care of the person who matters most — that’s you. At ARGO, we believe riding helps you recharge and relax.

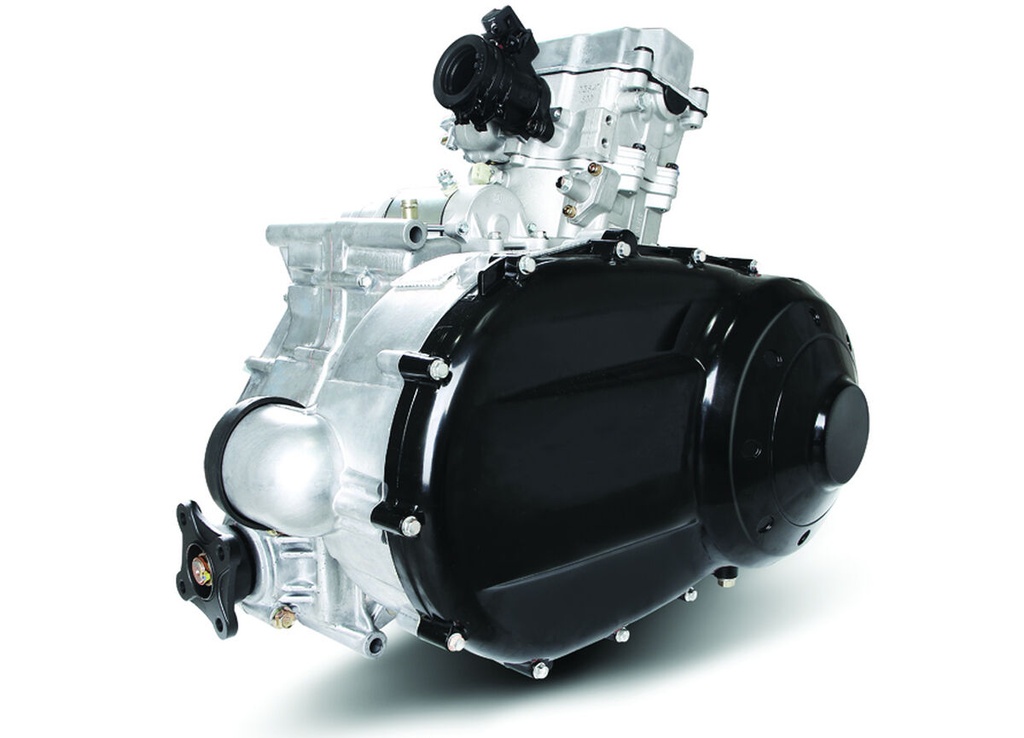

The 2024 XR 700 LE has a powerful way to help you forget about your distracting to-do list and constant naysayers. Its smooth ride provided by front and rear double A-arm suspension, 695cc liquid-cooled EFI engine, electric power steering (EPS) and exceptional ergonomics, allows you to focus on the dirt trail in front of you. The XR 700 LE includes 26" tires with aluminum rims, handguards and premium painted plastic body panels. This machine is guaranteed to do wonders on the trail and with your soul. That’s on purpose.
DISPLACEMENT 695CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 102 X 85.2 MM
COMPRESSION RATIO 10.7:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON N/A
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R/P
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 84.3 IN (2,140 MM)
WIDTH 49 IN (1,245 MM)
HEIGHT 49.2 IN (1,250 MM)
SEAT HEIGHT 34.6 IN (880 MM)
GROUND CLEARANCE 10.2 IN (260 MM)
WHEELBASE 51.1 IN (1,297 MM)
TOWING CAPACITY 1,000 LBS (454 KG)
DRY WEIGHT 705 LBS (320 KG)
WET WEIGHT 736 LBS (334 KG)
FUEL TANK CAPACITY 5.5 GAL (21L)
RIDER CAPACITY 1
SUSPENSION - FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION - REAR INDEPENDENT DOUBLE A-ARM W SWAY BAR
SUSPENSION TRAVEL - FRONT 7 IN (176 MM)
SUSPENSION TRAVEL - REAR 7.4 IN (188 MM)
BRAKE - FRONT DUAL HYDRAULIC DISC
BRAKE - REAR HYDRAULIC DISC
FOOT BRAKE STANDARD
TIRE SIZE (FRONT) AT26X8-14 (MAXXIS)
TIRE SIZE (REAR) AT26X10-14 (MAXXIS)
WHEEL RIM ALUMINUM
ELECTRIC POWER STEERING YES
BATTERY MF 18AH
FRONT RACK 114 LB (52 KG)
REAR RACK 209 LB (95 KG)
FRONT BUMPER N/A
HITCH STANDARD/2" RECEIVER

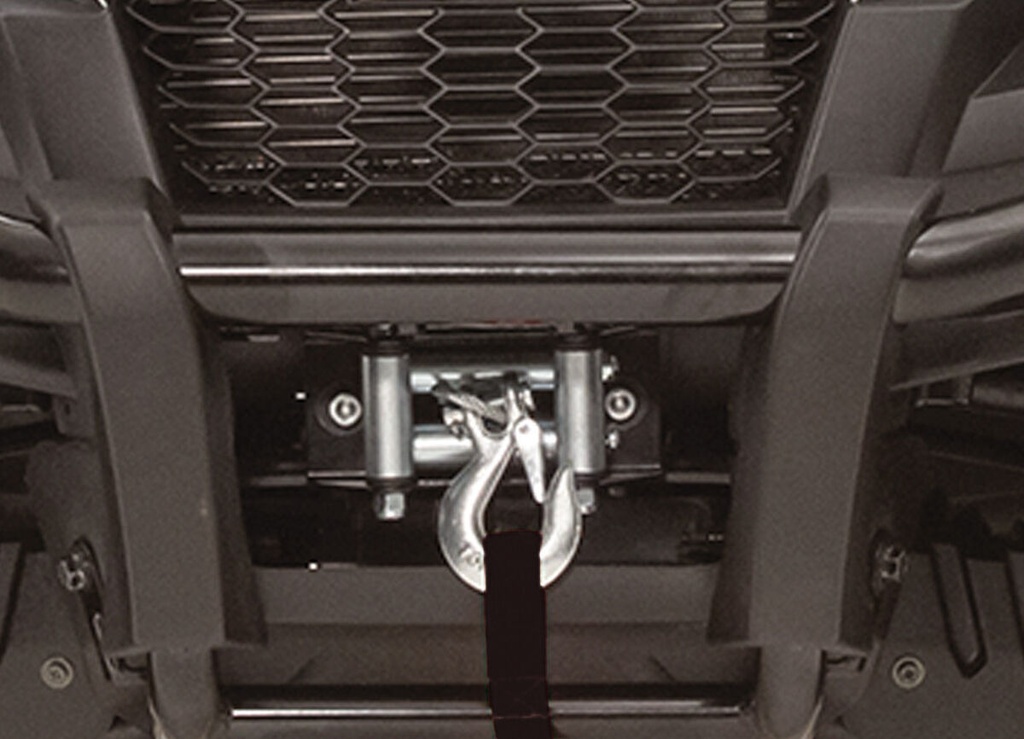

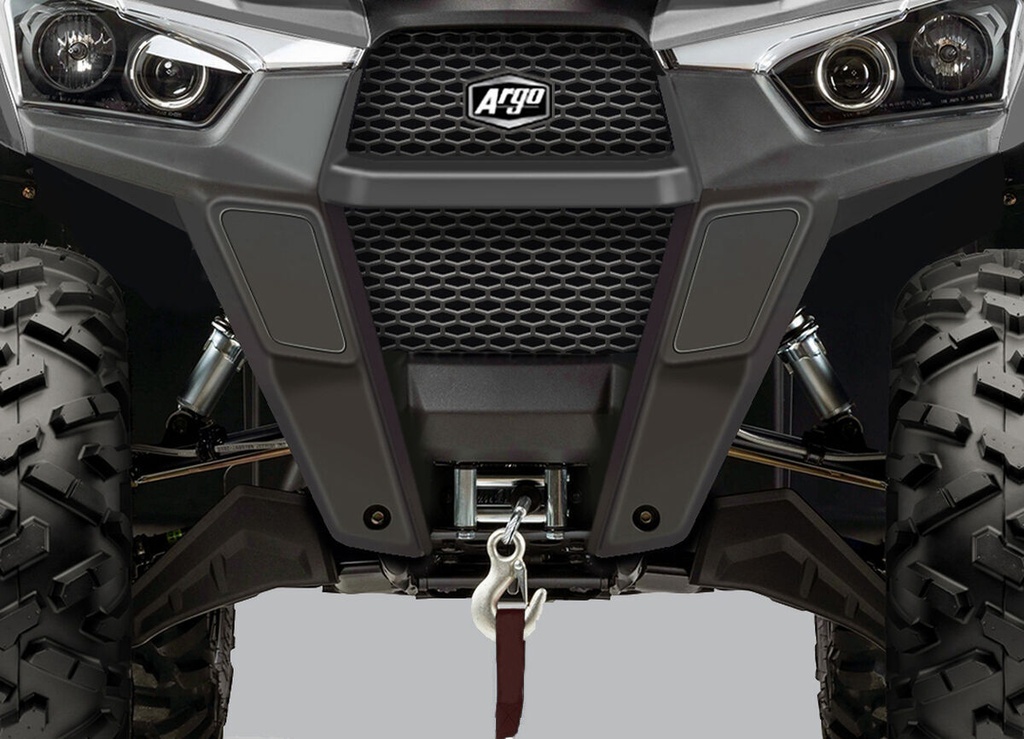

WINCH 3,000 LB WINCH
HAND GUARD STANDARD
12V CHARGER DC 12V 10A 120W
DAYLIGHT STRIP STANDARD
SKID PLATE PLASTIC
PASSENGER HANDLES NO
PASSENGER BACKREST NO
STORAGE CENTER CONSOLE AND LOCKABLE FRONT FENDER
FRONT BRUSH GUARD ACCESSORY
REAR BUMPER ACCESSORY
FRONT RACK EXTENTION ACCESSORY
REAR RACK EXTENTION ACCESSORY
USB CHARGING PORT STANDARD
REAR BOX STORAGE N/A
INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
LIGHTING DUAL 12V 35W HIGH/LOW BEAM, SINGLE WITH BRAKE LIGHT
COLOR PAINTED FLAME ORANGE OR PAINTED GRAPHITE GREY
PRICE DOES NOT INCLUID TAX AND FEES
