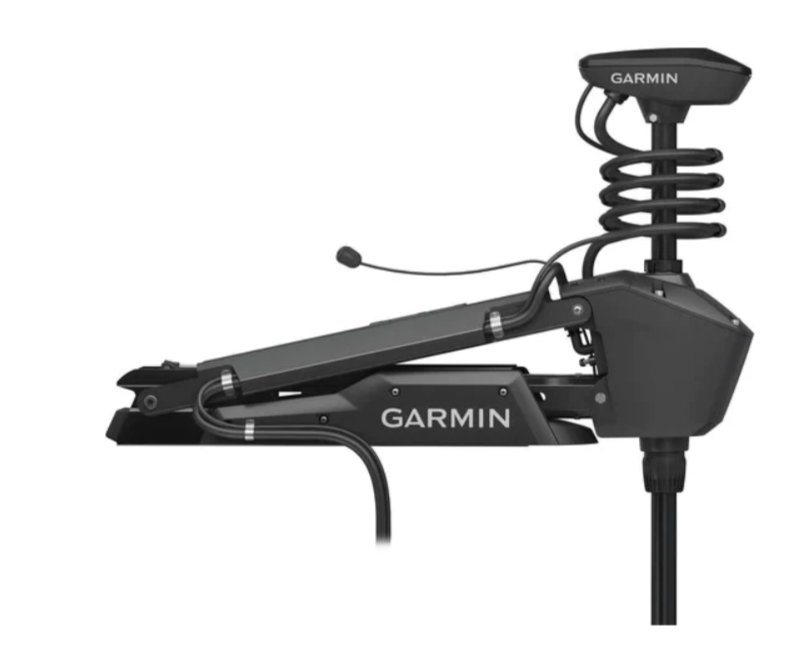

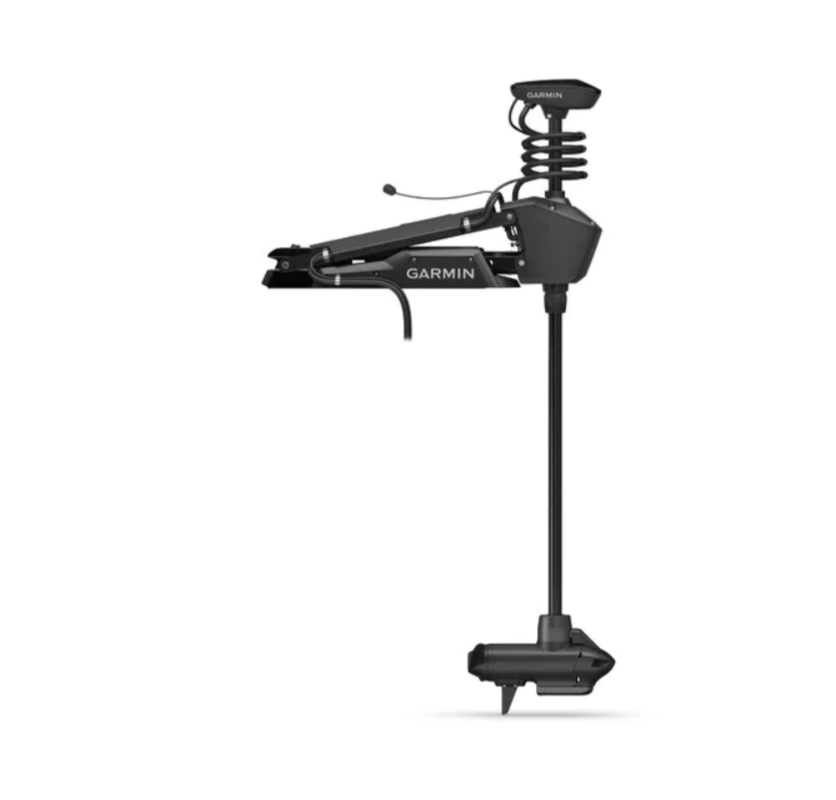

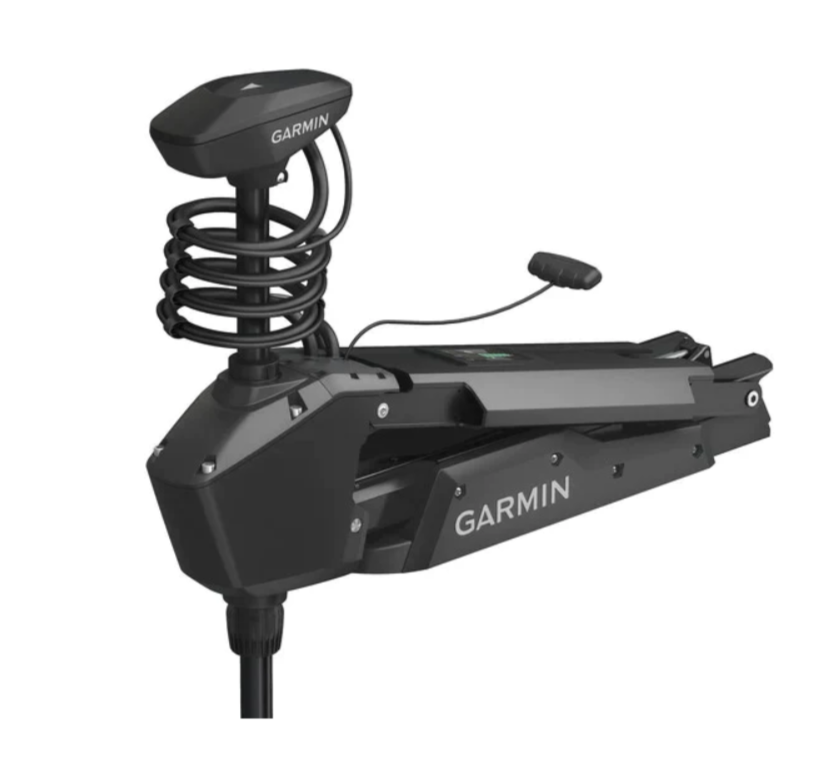

Garmin Force Trolling Motor

Get on fish faster, and stay on the water with the most powerful, most efficient trolling motor available — and it’s quiet, too.

Garmin Force Trolling motor is more efficient at 24 V than the competition’s 36 V system. It connects wirelessly to your Garmin chartplotter, and opens up a world of possibilities.

The Force comes with sonar built in, as well! Thats not all, the Garmin Force Trolling Motor gives you the control of a cable-steered pedal without the cable. Just point the handheld remote where you want to go, and Force will take you there.

✔ Electric Steering
✔ Built-in Heading Sensor
✔ Built-in GPS
✔ Wireless Remote
✔ Foot Pedal

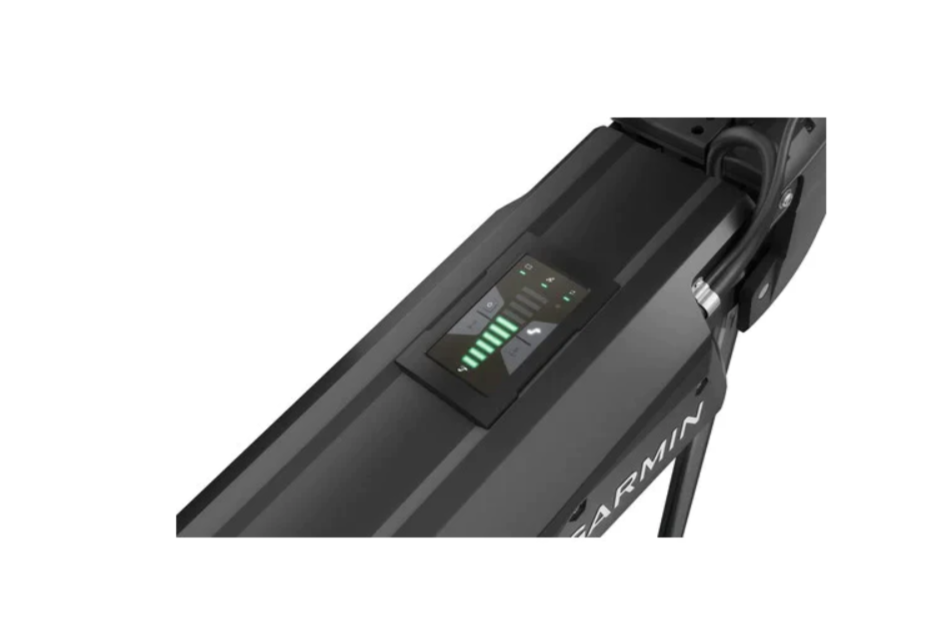

✔ Battery Indicator
✔ Variable Speed Control
✔ Depth and Temperature
✔ Route Following
✔ Anchor Lock
✔ Heading Hold
✔ Cruise Contorol
✔ Gesture Features
✔ Wireless communication
✔ Adjustable Pedal Resistance
✔ Chartplotter User Programmable Keys
✔ Gesture Features
✔ Autopilot Feature Control

Shaft length: 50"/57"
For use in: Freshwater; warranty also covers saltwater/brackish water use
Mounting location: Bow
Mount style: Scissor style mount
Max thrust: 100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc
Voltage: 24 V or 36 V
Lift-assist: dual gas springs
Water rating (components above water): IPX7
Frequencies supported: CHIRP sonar: High-wide CHIRP (150-240 kHz); ClearVu: Ultra-high definition 800; SideVu: Ultra-high definition 1200 kHz and 455 kHz
Partial frequencies supported: CHIRP Sonar: High-wide CHIRP (150-240 kHz); ClearVü: 800 kHz; SideVü: 455 kHz
Transmit power: 350 W
Maximum depth: CHIRP sonar: 800'; ClearVü: 200'; Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30'; 455 kHz SideVü: 500' to each side; 1000' total
Number of pins: 12-pin (orange connector)
Foot Pedal Dimensions: 12" L x 9" W x 4 1/2" H
Power installation: 12V wired or battery powered (2 AA)
Remote Display size: 1.2" (30.4 mm) diameter
Remote Display resolution: 240 x 240 pixels
Remote Display type: color, sunlight-visible, transflective memory-in-pixel (MIP)
Remote Battery life: typical use with backlight at low, 43.2 weeks


High-Powered

Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.

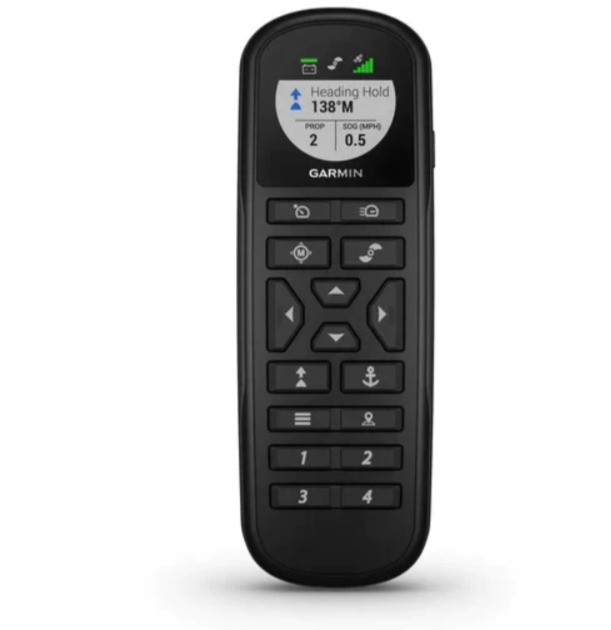

Water-Resistant Floating Remote

The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.

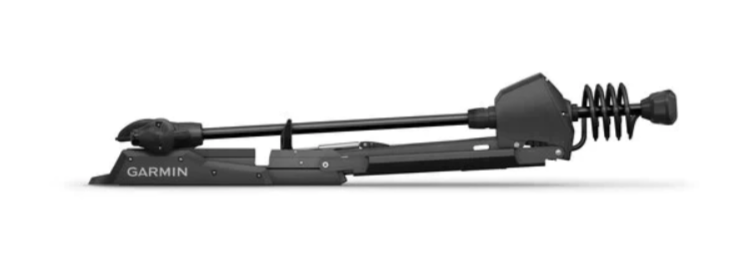

Robust and Easy To Use

The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.

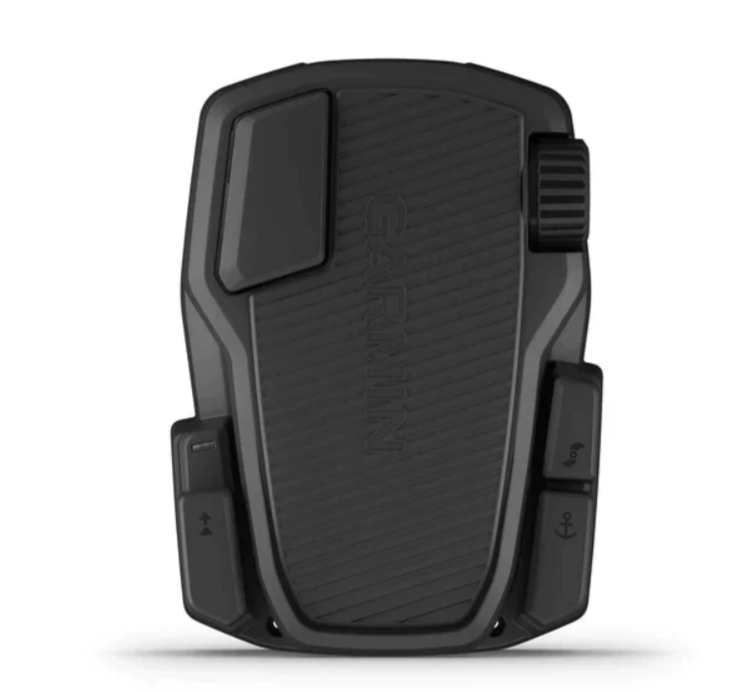

Wireless Foot Pedal

Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.

Remarkable Efficiency

The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.

Quiet Above and Below the Water

The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static

Wireless Chartplotter Integration

Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.

Integrated Sonar

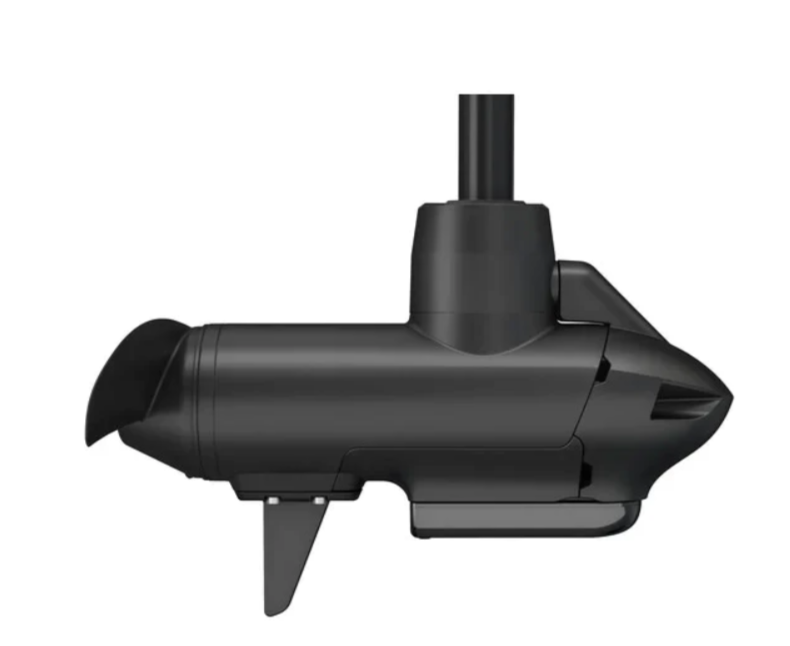

Force comes with a built-in transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. See the specs tab for more details on additional sonar support.

Built-In Autopilot

The built-in autopilot, with integrated heading sensor and GPS, provides anchor lock, heading hold and cruise control. Just set your track, and it will guide you along your course.
